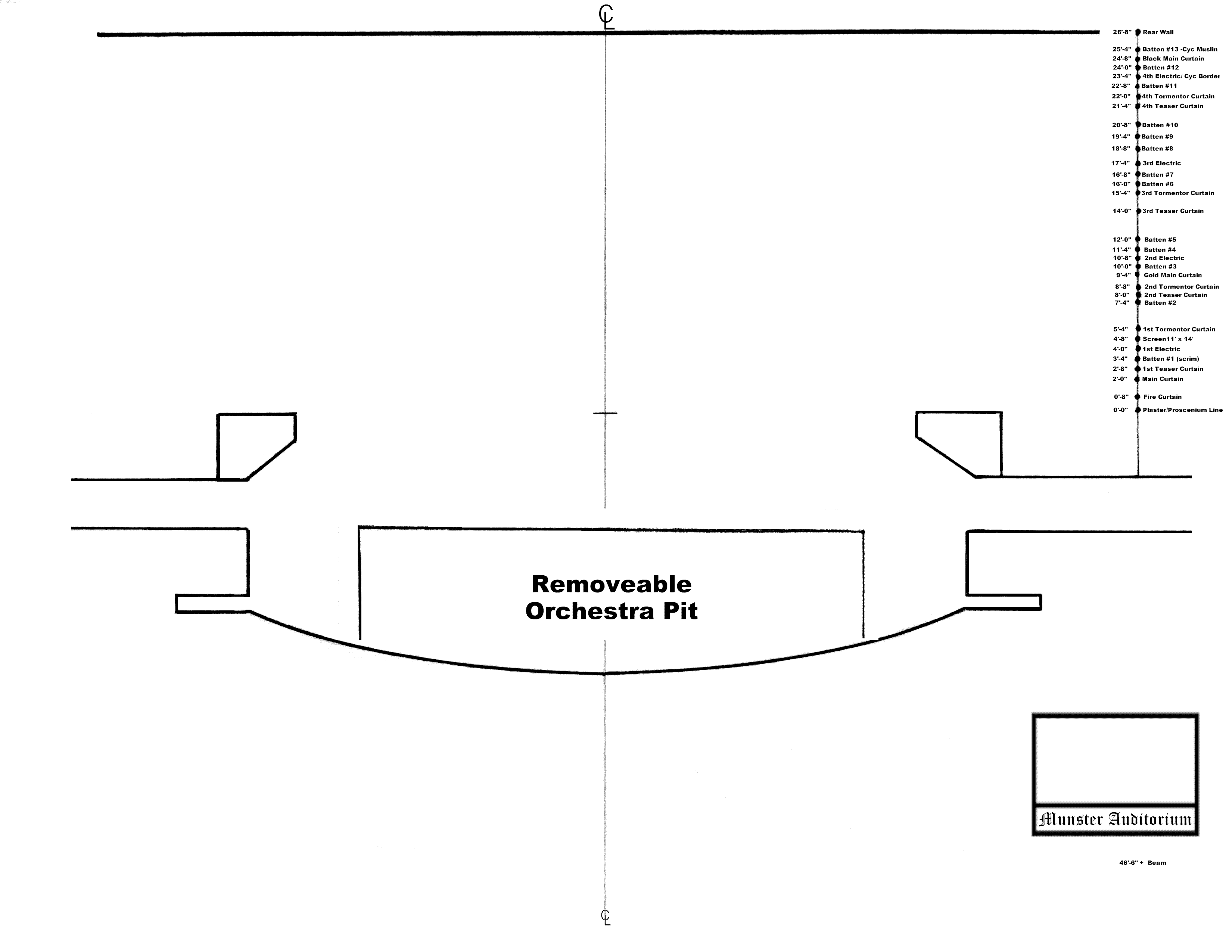

Stage Dimensions
Main Proscenium                 44'-3" wide 15'-0" tall
House Proscenium               51'-6" wide 16'-7" tall
Plaster Line to rear wall       26'-9"
Plaster Line to apron edge   18'-6" (at CL)
Plaster Line to house beam  46'-6" (at CL)
Plaster Line to Orch pit       10'-0" (at CL)  Pit opening 36' wide
Capped Orchestra Pit         36'-0" wide in 22 19'-7" wide removable stage sections
House Elevation                   3'-6" below stage level (-42")
Pit Elevation                         5'-8" below stage level (-68")
Backstage width               120'-3" wall to wall
