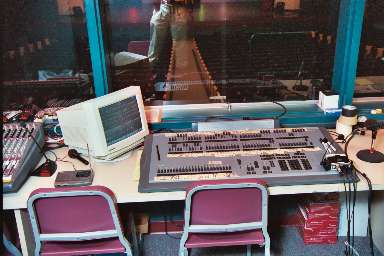

 ETC Express 48/96 console
ETC Express 48/96 Lighitng Control Console (DMX 512)
96 channels, 24 sub-masters/multiple pages, EFX, dual faders, 600+ cue memory, soft-patch, macros

STAGE CIRCUITS    (Dimmer Plot)
39 DIMATRONICS Quad 2.4kW Dimmers units 156 dimmers (120v 20a dimmer/circuit)
1st beam - 27 dimmers ( 1-27)
1st Elect - 29 dimmers (39-68) / 1st border -  8 dimmers R B G clear (31-38) 120w (120ER40)
2nd Elect -  3 dimmers (77-79) / 2nd border - 8 dimmers R B G clear (69-76) 200w (200/CL)
3rd Elect -  3 dimmers (91-93)  / 3rd border - 8 dimmers R B G clear (83-90) 200w (200/CL)
4th Cyc Border - 16 dimmers (94-109) R B G B  500w (500/CL)
24 Floor/wall receptacles (28-30 & 110-130) 2.4Kw
  4 constants (C 14-C17)
House Lights 23 dimmers (132-155)  250w each (EHT 250Q/CL)
Orchestra Pit - 1 dimmer (131)
 4 spare dimmers (80-82 & 156)
400amp stage interconnect available



LIGHTING INSTRUMENTS (active inventory)
Ellipsoids
12 ALTMAN Shakespeare 600   575w  20°   HX601 (FLK/LL) or HX600 (FLK)
12 ALTMAN Shakespeare 600   575w  15-35° Variable  HX601 (FLK/LL) or HX600 (FLK)
  4 ALTMAN 360Q                     750w  6x9   EHG or  HX601 (FLK/LL) or HX600 (FLK)
  9 ALTMAN 360Q                     750w  6x12 EHG or  HX601 (FLK/LL) or HX600 (FLK)
  5 ALTMAN 360Q                     750w  6x16 EHG or  HX601 (FLK/LL) or HX600 (FLK)

Fresnels
  5 ALTMAN 75Q                        1Kw  8"  BVT
30 ALTMAN 65Q                       750w  6"  BTN

Non-Lensed
  6 Scoop 14" Floods                     500w 500/IF
18 PAR 64                                    1Kw  Q1000PAR64Q/WFL

Followspots
  2 STRONG 575   HMI                  575w   HMI575W/GS
  2 ALTMAN Altspots                   1.5Kw    DTA or DTJ

 Dimmer Plot

Back to Facilities Page



Lighitng Plot

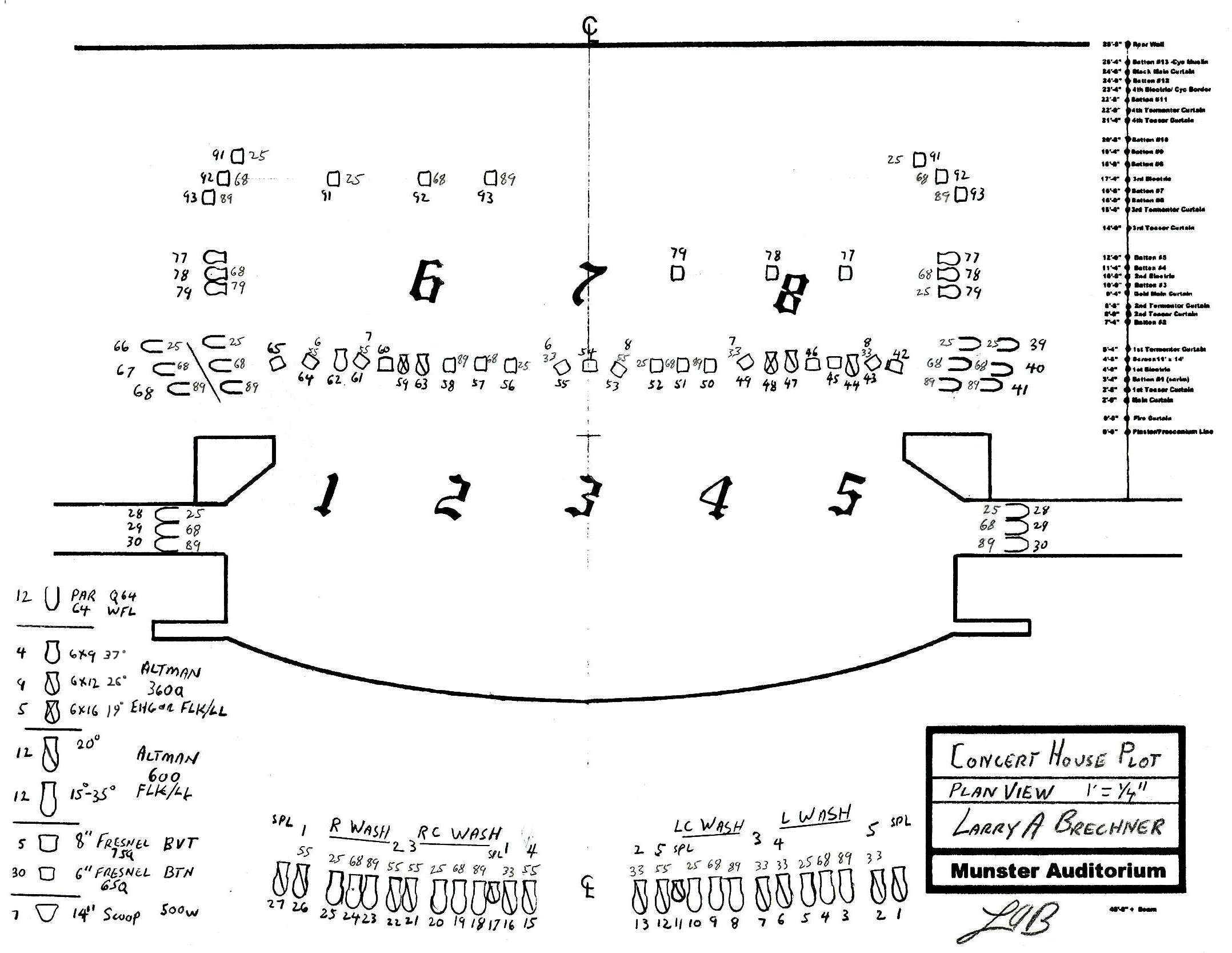

House Concert Lighting Plot

(Click on the above image to download a
printable copy in WORD document format)
